overview
MAIN FEATURES& MAIN TECHNIAL SPEC
Engine options: VOLVO PENTA TAD1351VE (285kW)

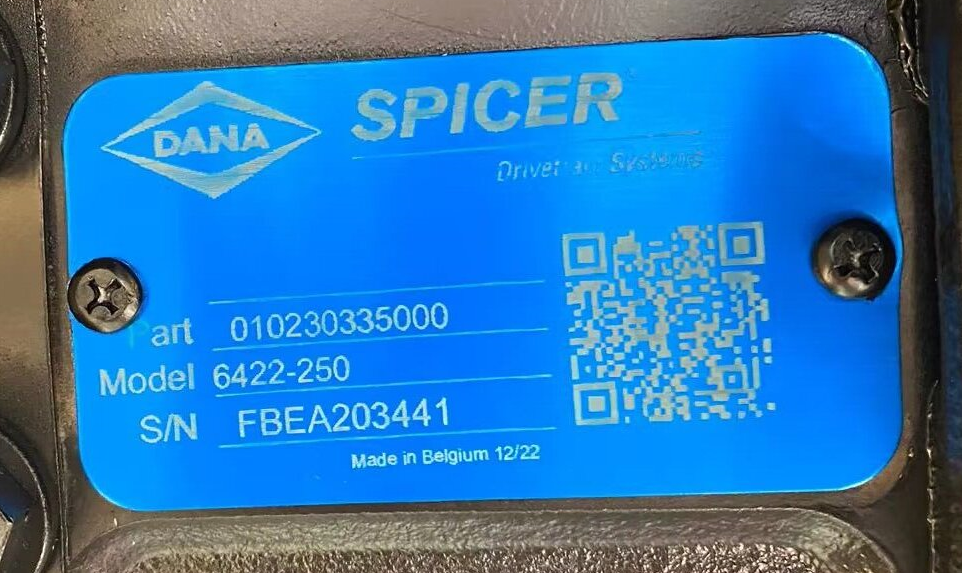

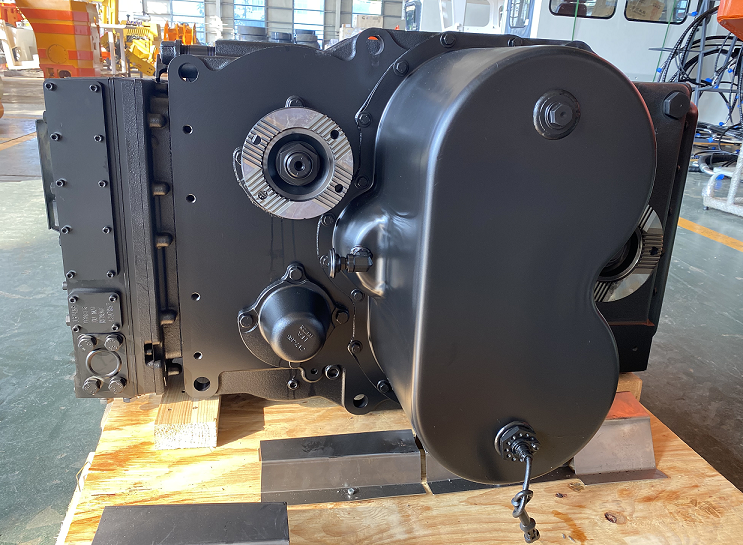

Transmission: DANA 6000
Torque Converter: DANA C9000
Axle : KESSLER D106
No. | Item | Content |
1 | Rated buck capacity | 6m³ |
2 | Rated load | 14T |
3 | Max scooping force | 246KN |
4 | Max traction | 324KN |
5 | Speed | 0-25.4km/h |
6 | Climb uphill (full load) | ≤25° |
7 | Max dumping height | 2384mm |
8 | Min dumping distance | 860mm |
9 | Max bucket lifting height | 5469mm |
10 | Total working cycling time | 14.4s |
11 | Turning radius | ≥6932 the outer of loader |
≥3283 the inner of loader | ||
12 | Max steering angle | 42.5° |
13 | Min ground clearance | 200mm |
14 | Swing angle of rack | 8° |
15 | Departure angle | 16° |
16 | Rated power | 285KW |
17 | Engine | VOLVO TAD1351VE |
18 | wheelbase | 3642mm |
19 | Weight | 37.8t |
20 | Length | 10652mm |
Width | 2792mm | |
Height | 2552mm |
