overview

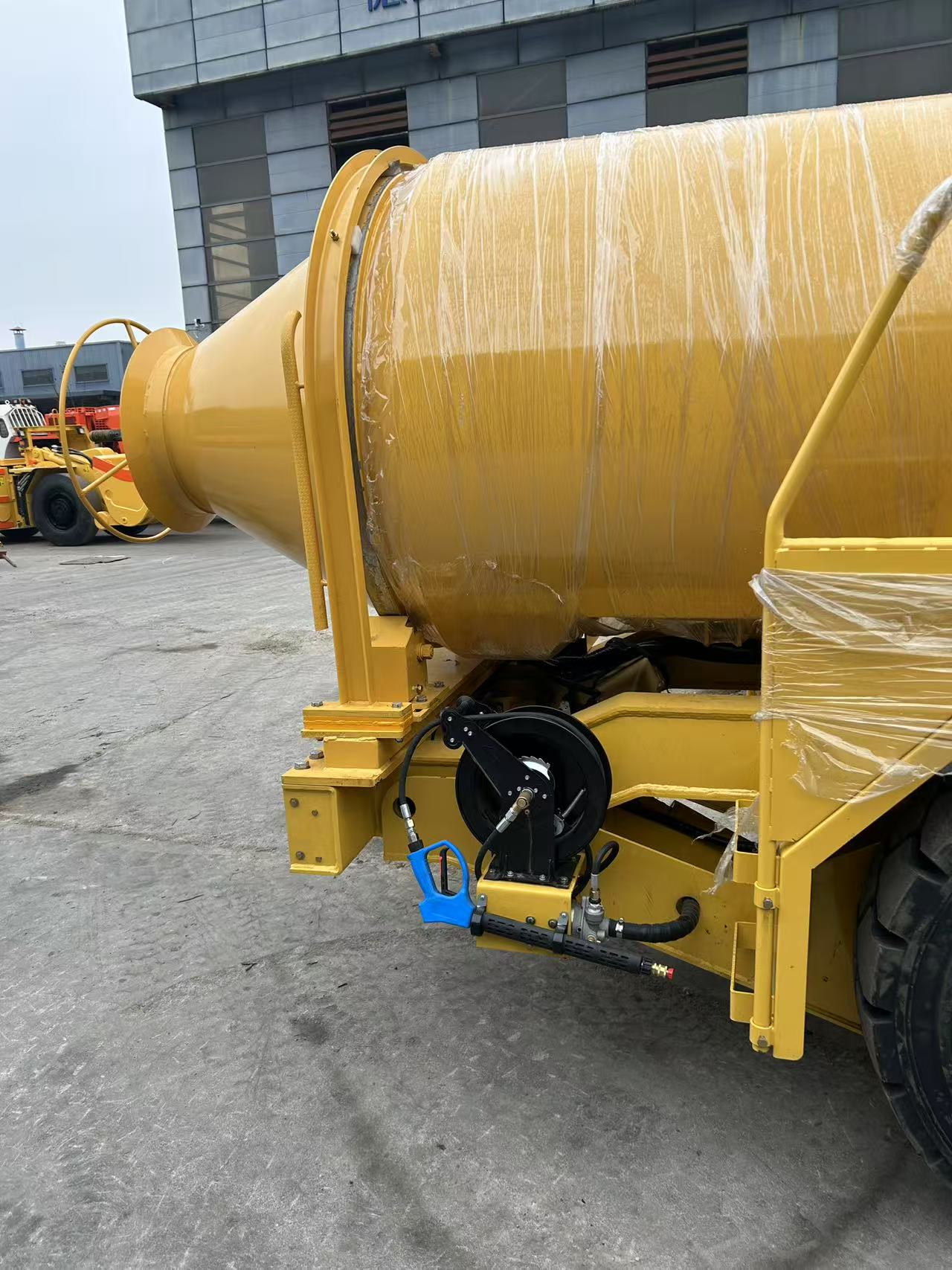

The KJCJ-4 Mining Concrete Mix Truck is a concrete mixing and transport vehicle specially designed for mining and tunnel engineering. It is suitable for various underground concrete transport applications, such as wet spraying operations and pavement pouring. Based on the specific conditions of the worksite, this vehicle can be designed with either a multi-functional switchable chassis or a dedicated fixed chassis.
MAIN FEATURES& MAIN TECHNIAL SPEC
No. | Item | Parameter |
1 | · Length (mm) | 8938 |
2 | · Width (mm) | 2000 |
3 | · Height (mm) | 2500 |
4 | Power(KW) | 129 |
5 | · Wheelbase (mm) | 3650 |
6 | · Center Distance (mm) | 1650 |
7 | · Ground Clearance (mm) | 414 |
8 | · Approach Angle (°) | 12～17 |
9 | · Departure Angle (°) | 22 |
10 | · Unloaded Weight (kg) | 11500 |
11 | · Loaded Weight (kg) | 21500 |
12 | · Turning Radius (Outer) (mm) | 6375 |
13 | · Turning Radius (Inner) (mm) | 3934 |
14 | · Discharge Port Lifting Height (mm) | 1452～2073 |
15 | · Forward/Reverse I Speed (km/h) | 5.5 |
16 | · Forward/Reverse II Speed (km/h) | 12 |
17 | · Forward/Reverse III Speed (km/h) | 26 |
18 | · Maximum Traction Force (kN) | 120 |
19 | · Swing Angle (°) | ±8 |
20 | · Frame Articulation (°) | ±40 |
· Geometric Volume (m³) | 5 | |
· Mixing Capacity (m³) | 4 | |
· Drum Rotation Speed Range (rpm/min) | 0～15 | |
· Manual Drum Lock | 有 | |
· Length (mm) | 4900 | |
· Diameter (mm) | 1420 |
