overview
DERUI underground service vehicle, designed for easy to
operate, safe and reliable, with hydraulic operated cassette manipulator changing the cassette such quick-change function, high comfort and stability of the whole vehicle, can greatly
improve productivity and profitability of the mine. The whole vehicle can be quickly replaced with various working cassettes on the general chassis. The whole process is
fast and convenient, saving time and effort, and can realize multiple uses of one vehicle and improve work efficiency. The whole vehicle adopts the front axle with oscillation and the
rear axle with rigid design to improve the comfort, safety and
stability of the whole vehicle. All for the philosophy of quick- change cassettes by use a common chassis.
MAIN FEATURES& MAIN TECHNIAL SPEC
Main Parameters
Overall Dimension (mm) (LWH)
7462 × 1800 × 2200 (Cabin)

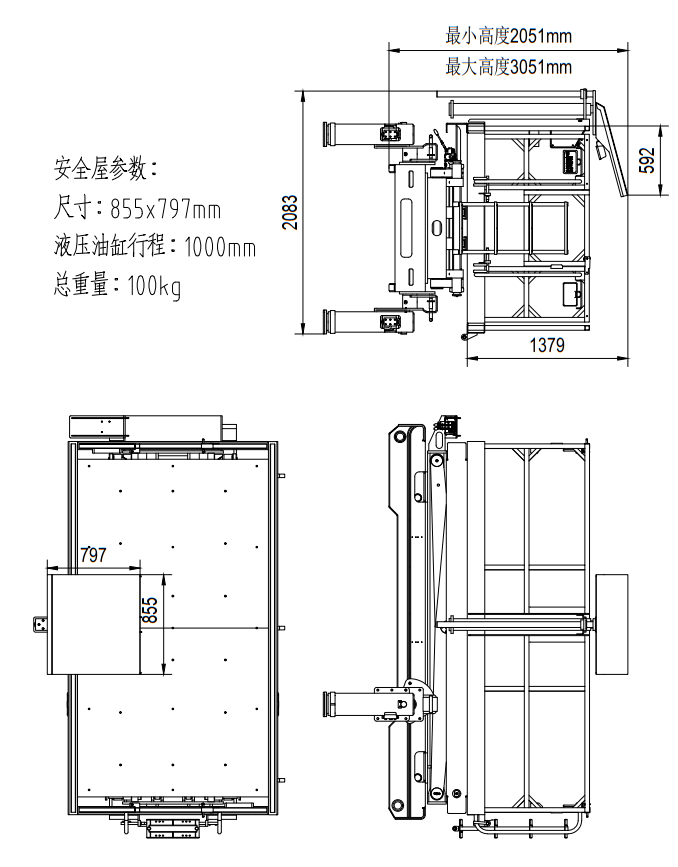

2571 (Scissor Lifter)

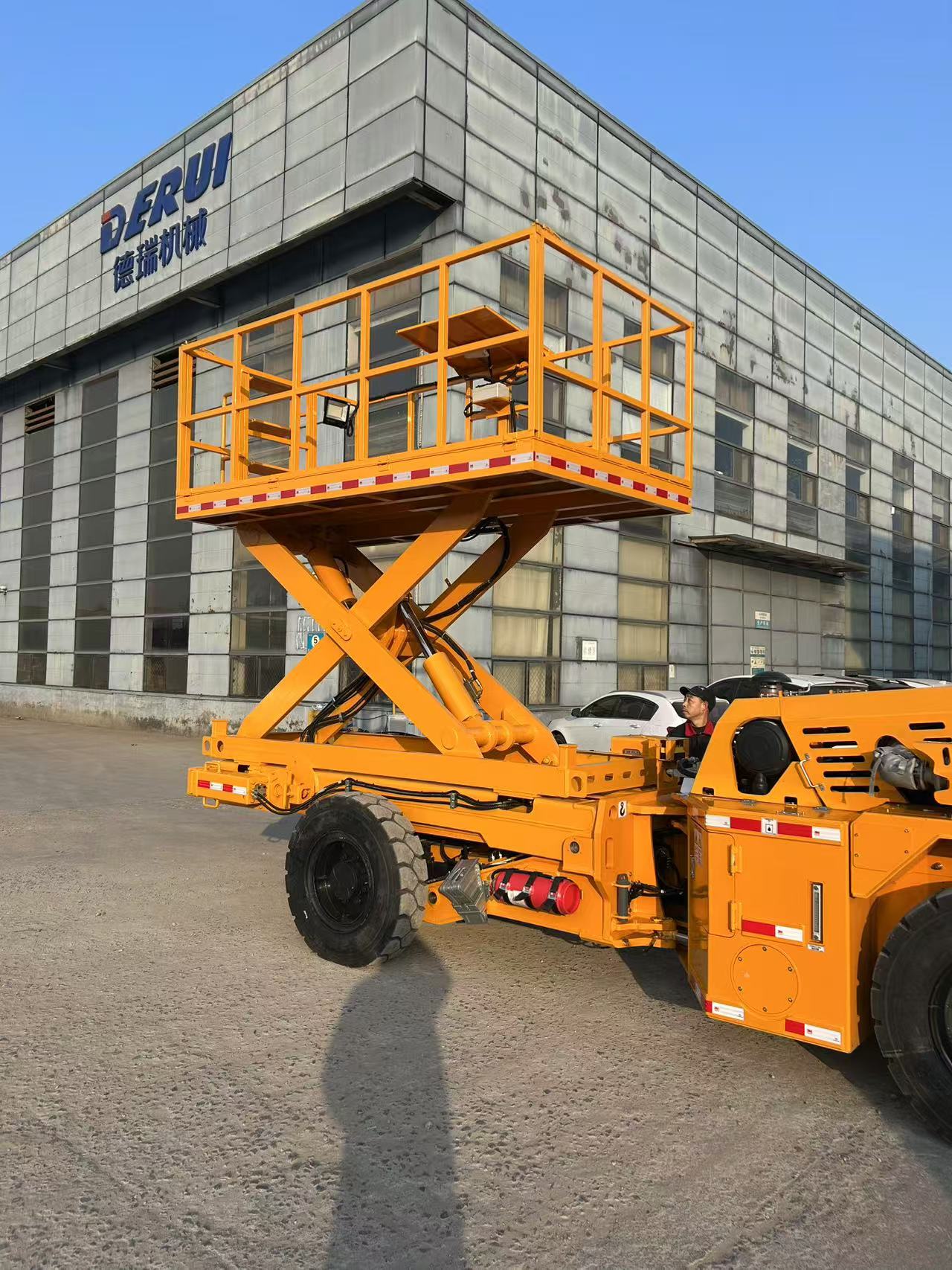

When with cassette of Scissor Lifter
Rated Payload (Capacity)
5000 KG (when with other cassettes)
6000 KG (when with scissor lift)
Carrying Capacity
5 Ton
Curb Weight (Kg)
9350 KG
Wheelbase (mm)
3560
Swing Angle
±8°
Approach Angle
16°
Steering Angle
±40°
Min. Turning Radius
6100 mm (Outer)
3900 mm (Inner)
Min. Ground Clearance
276 mm
Forward & Backward Travel Speed (with DEUTZ TCD2013L04)
1st Gear: 4.5 km/h
2nd Gear: 10.5 km/h
3rd Gear: 18.8 km/h
